VEHICLE TESTING AND ENGINEERING CENTRE

Independent testing laboratory

We offer individual, tailored services for complete system tests and individual component testing. Our strength lies in up-to-date, innovative testing procedures for research, development and quality assurance. FAKT supplies a broad range of services in the area of vehicle and component testing and development.

VEHICLE TESTING

CUSTOMISED

FAKT offers customised solutions for testing vehicles on public roads or test circuits at home and abroad. Customer requests are reliably implemented with great precision. Confidentiality and individual support are a must.

PROGRESSIVE

FAKT continuously optimizes its services and expands its range of offerings based on the latest technology and standards. Tailored processes and the latest technology provide support when running the vehicles, with services and in analysing the data.



Vehicle endurance run

FAKT offers vehicle endurance run trials. The trials can be designed to run round the clock with qualified FAKT drivers on prescribed routes and profiles.



Roller bench endurance runs


Typical applications:

  • Endurance run with driver or automated driving system, PC controlled
  • 7 x 24h operation
  • Driving profiles according to customer specifications
  • Various measurement sensors (acceleration, temperatures, rpm, pressures, DMS, and many more)



Technical data:

  • 1 or 2 axle drive (4-wheel) up to 260 kW each
  • Continuous output 70 kW



Download vehicle testing

Emissions

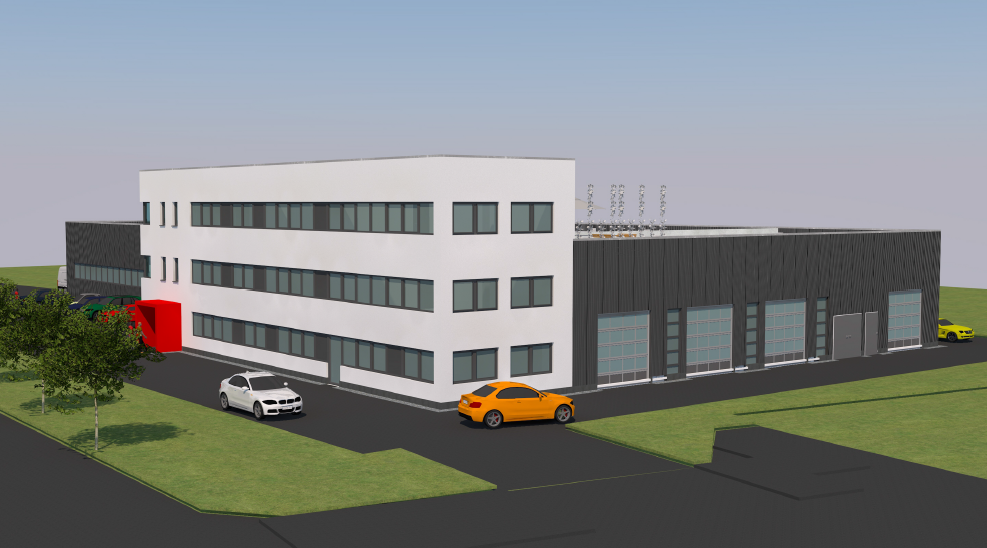

abgas

from Q3/2018

Emission testing

We leave nothing to chance: Professionalism is our standard. Testing the performance and pollutant emissions of engines and exhaust systems as well as exhaust simulations and issuing exhaust certificates are all part of our extensive range of services.

FAKT has the requisite testing equipment and capacity as well as qualified staff. We offer support at the highest level through our comprehensive service and by transferring our know-how back to the customer.

What we offer:

  • 48" all-wheel vertex chassis dynamometer (450 kW)
  • All-wheel dual rollers (250 kW)
  • Single-axis dual rollers
  • Exhaust measuring system
  • Sound measurements
  • Measurement of sound pressure level
  • Air-conditioning
  • Driving simulator, optimisation

Exhaust roller dynamometer test bed

Typical applications:

  • Sound measurements
  • Resonance analysis (BSA)
  • Airflow simulation
  • Power measurement
  • Driving simulation
  • Optimisation



Technical data:

  • 48" all-wheel vertex chassis dynamometer AIP MAHA (2x180 kW)
  • Emissions measurement system APICOM
  • Airflow: 50,000 m³/h


Particle count:

  • AVL APC 489 Advanced
  • AVL Microsoot MSS plus


Special features:

  • Climatic measurement cell (10° to 35°C)



Download exhaust roller dynamometer test bed

Download emission/performance for heavy duty vehicles

Brake testing

What we offer:

  • For all vehicles from scooter to truck, special vehicles and racing cars or sports cars
  • Testing and measurement of brake systems to 71/320/EEC or ECE-R 13; ECE-R90
  • Producing reports for approvals or development and quality reviews



Testing brake systems for:

  • Mechanical strength
  • Standstill time
  • Cracks
  • Wear and tear
  • Leaks
  • Functionality



Brake pad comparisons with regard to:

  • Braking behaviour
  • Coefficient of friction
  • Temperature response
  • Pressure characteristics
  • Fading
  • Speed behaviour
  • Wear and tear
  • Vehicle-specific application areas
  • Aerodynamic and temperature tests specially for motor sports
  • Testing on roads or inertia test bed
  • 0 - 3200 rpm
  • 8 - 185 kg m2
  • Torques of up to 4,000 Nm
  • Hydraulic braking system up to 150 bar
  • Cooling air / airflow simulation up to 320 km/h
  • Braking temperature up to 1,300°C



Download brake test



Inertia branking test bed

Typical applications:

  • Spare brake disk test to ECE-R90
  • High-speed braking (up to 3,200 rpm)
  • Airflow simulation (up to 320 km/h)
  • Simulation of vehicle inertia, driving profiles, friction drag and air resistance
  • Inspection for cracks
  • Brake calliper expansion
  • Breakaway torque
  • High pressure test
  • Brake pressure
  • Temperature measurements with up to 7 rotating and 6 static temperature sensors
  • Route simulation with Dspace (communication interface via CAN Bus)



Technical data

  • Inertia 8…185 kgm² (in 1.25 kgm² steps)
  • Braking torque 0...4.000 Nm
  • Brake pressure 0...150 bar
  • rpm test bed 0...3.200 rpm
  • Cooling air speed 0...320 km/h (station II only)
  • Cooling air volume flow 0...30 m³/h (station II only)
  • Engine power (mech.) Approx. 190 kW
  • Braking modes pressure or torque regulated, time or temperature controlled
  • Temperature measurement 0...1.300°C (infrared and Type K thermocouple measurement)



Brake Dyno

We at FAKT decided recently in supplementing our product and service portfolio. We are now able to carry out the entire range of NVH tests - with the help of the installed climate chamber, even under different environmental conditions. Due to the generously designed test cell, even entire axles can be assembled.

Due to the new acquisition of the second flywheel mass test bench we will be able to extend our services to the following measurements:

  • flywheel mass simulation car, SUV, truck (7,5t)
  • NVH measurements
  • Assembly of complete axes possible
  • Emission and particle measurement
  • Environmental simulation:
    • climate chamber -40°C - +60°C
    • air humidity 15 - 90%
    • water and salt shower
  • 90 preset cycles for homologation measurements
  • Speeds up to 3,000 rpm
  • Drive unit with 185 kW output (short term up to 200 kW)
  • Torque short-term up to approx. 2,300 Nm
  • Brake pressure up to 207 bar
  • Maximum brake pressure rate 1,037 bar/s
  • Climate chamber: -40°C - +60°C
  • 15% - 90% relative humidity
  • Inertial mass simulations of passenger cars, SUV up to small trucks (7.5 t)
  • TISAX approved: prototype-proof



Download brakedyno



COMPONENT TESTING

EXTENSIVE

Stress analyses for components, stability or lifetime calculations, FAKT test facilities can be set up for nearly any requirement, as specified by the customer, and can be flexibly deployed depending on the application.

INNOVATIVE

High-tech equipment and continuous improvements to test beds permit a wide variety of services to be
offered. The in-house research and development department designs, manufactures and realises components for the test area in order to meet the requirements of the future.



Stability testing

  • Destructive / non-destructive tests
  • Static and dynamic trials
  • Determination of Wöhler curves
  • Analyses of measurement data, damage calculation, lifetime calculation
  • Strain and stress measurements with DMS
  • Determination of Wöhler curves for components (S/N curves)
  • Determination of stability of connections, structures and welding seams
  • Tests for EU/ECE certification of components (e.g. coupling devices)
  • In-house development / jig construction for fixing components / applying force
  • Component assessment and analyses, crack testing and endoscopy



8-axis test bed (realtime)

  • Variable test bed for static and dynamic stability tests
  • Up to 8 individually configurable axes
  • Forces on x, y and z axes as well as torques



Dynamic vibration tests

  • Simulated load profiles
  • Long time history data



2/3 axis test beds

  • Fatigue strength
  • Bending tests, tensile tests
  • CARLOS test



Servo-hydraulic fatigue strength test beds with emissions simulator (fatigue strength for hot components)

  • 1 or 2 axis operation with variable phase angle
  • Tests in accordance with customer-specific test profile
  • with temperature cycles (thermo-shock) and optional water shock

    Download stability test

Technical equipment

Technical equipment for 8-axis test bed (realtime)

  • Servo-hydraulic test bed with 8 cylinders
  • 1 - 8-axis excitation
  • Forces from 100 N to 250 kN
  • Test frame 5.0 x 5.6 m
  • Optionally with electric heater



Technical equipment for 2/3 axis test beds

  • 1, 2 or 3*-axis excitation
  • Testing frequencies up to approx. 50 Hz
  • Forces from 100 N to 25 kN


Technical equipment for servo-hydraulic fatigue strength test beds

  • 1 or 2-axis excitation
  • Testing frequencies up to approx. 180 Hz 1-axis
  • Testing frequencies up to approx. 40 Hz 2-axis
  • Forces from 100 N to 16 kN
  • With regulated generation of hot gases (oil/gas burners)
  • Temperatures up to 1,100 °C (exhaust)
  • Mass throughput up to 800 kg/h



Push-pull testing system / universal testing machine

  • Static loads up to 25 kN
  • 800 mm stroke
  • Adjustable speed and profiles
  • Force accuracy +/- 1% of the measured value





* on request

Vibration tests with hot gas option "hot shake test"

  • Vibration tests on components of any kind, particularly from the automotive and aviation sectors
  • Testing in accordance with various profiles
  • Resonance analyses (BSA)
  • Stimulation of test components
  • Development and manufacture of jigs aligned with testing requirements
  • Calculation of load spectra from measurement data
  • Hot gas generation for the thermal simulation of exhaust gases up to 950 kg/h, 1100 °C
  • With temperature shock, coolant control and exposure to water



Download vibration tests

Technical equipment

  • 2 x e-shaker systems with slip table with a force vector of up to 90 kN
  • Test frequencies of up to 2,500 Hz
  • Profiles: Sine, Random, Sine on Random, Shock, Resonance Search, Track and Dwell (RSTD)
  • Travel measurements by means of a laser vibrometer
  • Vibration tests for exhaust gas sensors with overlaid temperature shock / gradients up to 1500 K/s
  • Vibration tests on rotating turbo-chargers (coolant and oil supply)
  • Vibration tests for exhaust gas systems
  • Vibration tests with exposure to water



Simulation & construction

Numerical fluid mechanics delivers insights into complex flow processes which cannot be displayed experimentally or only with difficulty.

By using numerical methods for flows inaccessible to experimental study due to extreme temperatures or pressures, FAKT enables detailed knowledge to be gained of complete flows (speed, pressure, temperature, turbulence parameters).

What we offer:

  • Flow simulation with detailed analysis of complex flow processes
  • Preparation of report with results not just for experts
  • Proposals for optimising flows



Download fluid mechanics

Download CAD konstruktion catia v5



Temperature change test

  • Temperature change tests on exhaust systems
  • Rotating turbo-chargers, exhaust coolers
  • Catalytic converters, particle filters
  • Exhaust valves, exhaust flaps
  • Seals, flanges, clamps
  • Cooling circuit simulation with airflow cooling
  • Water spraying device
  • Leakage measurements
  • Soot and ash build-up on catalytic converters



Download temperature changes

Technical equipment

  • 25 hot gas generation systems
  • Hot gas deflector (thermo-shock ceramic valve gate)
  • Natural gas or heating oil / diesel fuels
  • Temperature gradient 1,500 K/min
  • Adjustable air masses up to 1,500 kg/h
  • Adjustable exhaust back pressure up to 4 bar
  • Adjustable temperatures for hot gases (up to 1100 °C), oil (up to 150 °C) and coolant (up to 130 °C)
  • Coolant volumes up to 20 m3/h
  • Up to 90 temperature measurement channels
  • Parallel operation of 3 hot gas generators
  • Parallel operation of 2 or 4 specimens
  • Exposure to water (with and without saline solution)
  • Fixture for systems of up to approx. 5 m

Climate/environmental testing

  • Vibration and shock tests with temperature monitoring
  • Temperature and moisture tests
  • Temperature change tests
  • Temperature shock tests
  • Climate tests
  • Corrosion tests
  • Dust
  • Salt spray
  • Ozone
  • Various media (liquid, gaseous)
  • IIP protection grades



Technical equipment

  • Several climate chambers up to 1,200 l, 15°K/min
  • Thermal shock chamber
  • Temperature ranges from -70 °C to +200 °C
  • Humidity range: 10 ... 98 % r. h.
  • Two electrodynamic shakers LDS 56 kN with slip table



Download climate and environmental testing



Corrosion test

  • Salt spray test to DIN EN ISO 9227 (with brine)
  • Condensation water test to DIN EN ISO 6270-2
  • Controlled climate: 23 °C, 50% rel. humidity



Technical equipment

  • Air-conditioned salt spray chamber (Weiss)
  • Temperature ranges from + 20 °C to 55 °C
  • Test chamber volume approx. 700 litres
  • Test chamber dimensions (w/h/l): 1650 x 740 x 640 mm



Compressive load tests

  • Quasi-static compressive load tests on a wide variety of components
  • Pressure media: gas or oil (usually air, nitrogen, hydraulic oil)
  • Testing the maximum load of components
  • Pressure testing up to specified pressure or bursting of the component
  • Determination of safety factors
  • Internal pressure changing tests or burst tests



Technical equipment

  • Safety burst chamber 1000 x 750 x 750 mm
  • Static pressure up to 1700 bar
  • Dynamic oil pressure: 0 to 500 bar (relative)
  • Dynamic gas pressure: 0 to 50 bar (relative)



Download EMC electromagnetic compatibility

Download photometric laboratory

Download IP protection tests

Downlaod mirrors and indirect vision



Homologation

VERSATILE

As an accredited/designated Technical Service, FAKT offers the entire spectrum of approval tests to do with vehicles. To this end, all the necessary technical reports are produced as the basis for issuing EU / ECE type approvals for complete vehicles, systems or stand-alone technical units. In the national sphere, reports are produced for issuing General Operating Licences (GOL) or parts certificates for all components or amendments.

Download homolagation

Download electric mobility

EXPERIENCE

A wealth of experience and the provision of test vehicles with test specimens installed round off the services. FAKT works closely with approval authorities to enable you to process approval procedures quickly and without complications. The conformity checks (COP) required in law to safeguard products are carried out neutrally and give objective results.

Kraftfahrt-Bundesamt (KBA)

3D-Scanner

Eingefügt am 23.01.2025 - 15:19 Uhr

COMPANY

FLEXIBLE

Our portfolio ranges from support for development or design to national or international approval. We put together the necessary reports and designs, develop complete testing specifications, certify your QM system, conduct COP product checks and produce the documentation. From the test bed to practical test drives — we offer a one-stop shop.

PROFESSIONAL

FAKT benefits from its know-how acquired over many years in order to set up individual testing conditions for testing individual components or complete systems with the highest level of precision. The focus is not only on the technology used and the results obtained but also on delivering cost-effective solutions.



Locations



FAKT Switzerland (recognised by Astra)



Besides testing, we also offer you comprehensive advice in all aspects concerning the approval of road vehicles.

You will receive comprehensive advice and service for approving vehicles in Switzerland and also within the EU.

Our employees have more than 10 years’ experience in the field of testing and approving vehicles for use on the road.





Our team in Switzerland

Since launching in Switzerland in 2010, we have been able to steadily expand the team as well as optimising and improving our services.





FAKT AG
Prüf- und Ingenieurzentrum
Augrabenstrasse 9
CH-9466 Sennwald

Business hours:
08:00 - 12:00 hrs
13:00 - 17:00 hrs

Bank Details:
St. Galler Kantonalbank
CH- 9001 St. Gallen
Swift-Code: KBSGCH22XXX
Clearing:78117
IBAN: CH09 0078 1609 5208 2200 0
IBAN Euro-Konto:
CH79 0078 1609 5208 22001

Registration for testing
Astra info
Mandate
(accredited testing facility for mounting gas tanks to power vehicles)

Philosophy

Independent testing laboratory

FAKT started in 1996 as an independent, designated testing laboratory accredited to DIN/ISO 17025/17020 with services for transport and industry. Based in Heimertingen near Memmingen/Germany, FAKT presides over the best possible transport links with its central location. Here you can benefit from testing and trials in engineering and outsourcing. Take advantage of the know-how of our experts and a wide range of testing systems.



Concentrated work

Complete system solutions are our strength.
The service comprises not just tests and trials but also the requisite preparations and follow-up processes. This includes preparing the necessary reports and designs, providing testing vehicles with the test specimens fitted as well as the development of complete testing specifications. But the company will also certify your QM system with its own certification centre, conduct COP product reviews, prepare documentation and transport test pieces. Our portfolio therefore stretches from support for development or design all the way to national or international approval, from the test bed to practical test drives, from trucks to trains — we offer it all as a onestop shop.



Reliable planning

With our extensive experience and wealth of knowledge, we offer a high level of expertise, quality work, reliability, punctuality and flexibility. With above-average investment in training and further education, we ensure that our employees deliver first-class performance. And our feel for the requirements you will be facing tomorrow and the systematic refinement of our services are further guarantors of top-quality results. With us, you will always be one step ahead of the game.



Structured approach

Focusing on the core business increases your chances in global competition. If you want to be successful in the future, you need to show flexibility and expertise as well as knowing your customer — now more than ever. FAKT works in close coordination with you - independently, reliably and on schedule. Our 24x7 operation permits complicated testing processes to be mastered in double-quick time with the highest standard of quality.

Long-term collaboration

We want our services and products to boost our customers’ success. Our corporate philosophy is designed for a long-term collaboration between partners, characterised by mutual trust. Our objective is to live up to your expectations in terms of professional expertise, punctuality, price and service.



Comprehensive services

We bring the road or other conditions to the test bed which can realistically and repetitively simulate the desired testing conditions. The specialists from FAKT will support you with their broad know-how, i.e. In the planning of testing processes, stress analyses of components, stability and lifetime calculations or vehicle endurance trials at home and abroad.



Well-conceived processes

FAKT will test for you in accordance with statutory provisions such as EU/ECE or DIN/ISO and customer-specific specifications. In many cases, standards and the specification precisely describe the demands on vehicle or component trials. Their systematic implementation requires a lot of experience and knowledge in order to obtain the best results. The application and targeted optimisation of test equipment and jigs for the demands made are carried out quickly and flexibly at FAKT. In the case of new testing assignments, FAKT analyses the task with the customer and offers the best possible course of action. Along with the technology used and the results obtained, cost-effectiveness is also a primary consideration. FAKT combines the results and experience from testing applications in new testing specifications.

Employees

Our employees include:

  • engineers for designing, calculating, monitoring and controlling the testing structure and the testing process
  • trained measurement technicians for calibrating and testing the control and measurement technology and fitting strain gauges
  • qualified test bed technicians for assembly work and carrying out trials
  • selected / experienced test drivers with professional training
  • trained to ISO 9001

The splits are as follows:

  • 39% engineers
  • 15% technicians
  • 40% skilled workers
  • 6% admin



We are there for you 24 hours a day, 7 days a week! We welcome the challenge.

Testimonials

Our customers include:

  • Vehicle manufacturers
  • Parts and systems suppliers to the automotive industry
  • Technical inspection agencies (TÜV, Dekra, GTÜ)
  • System suppliers to the rail industry
  • Specialist interest press, TV
  • Vehicle tuners
  • Testing facilities
  • Engineering offices

A small extract from our customer list:

  • BMW
  • Daimler
  • Porsche
  • Volkswagen AG
  • Continental
  • Eberspächer
  • Bosch



and many more ...



Career

MECHANIC FOR OUR VEHICLE TECHNOLOGY / BRAKE TESTING DIVISION AT OUR BENNINGEN FACILITY

Your tasks will include:

  • Converting/ assembling brake systems (spare parts, sports brake systems, special brakes)
  • Carrying out test drives on our proprietary test circuits
  • Preparing documentation material (measurement logs, photo documentation, ...)
  • Procuring test vehicles


Prerequisites for performing this job successfully:

  • Driving licence class B
  • Preferably technical training, ideally as a car mechanic or similar type of vocational training
  • Basic knowledge of MS Office (Word and Excel) and Internet Explorer
  • Good team player and good communication skills
  • Willing to show initiative and take responsibility in your work


What we offer:

  • Full-time job (40 hrs/week) with flexitime component
  • Solid grounding
  • Interesting assignments in a young team
  • The chance to further your career within the company


Have we piqued your interest?
In that case, please apply to our business address: FAKT GmbH, Grüntenstraße 3-5, 87751 Heimertingen or send your application to

JOB ADVERTISEMENT FAKT-TECHNIK GMBH, HOLZGERLINGEN FACILITY

Job description
We are looking for a test driver for our Car Division (BE) Holzgerlingen Place of work: D-71088 Holzgerlingen Baden-Württemberg

FAKT also offers vehicle endurance testing as an extended service. On the basis of predetermined routes and profiles, these vehicles are tested round the clock by qualified drivers belonging to FAKT over several thousand kilometres.

Prerequisites for performing this job successfully::

  • Completed training as car mechanic
  • Driving licence class BE
  • BMW driving qualification (B1, B2, E1)
  • No points in the central traffic register
  • Willingness to work shifts with flexible working hours



Employment relationship:
Fixed-term contract

Working hours:
Schichtarbeit

Please send your application to our business address or send it to



Accreditations

Sustainability guideline FAKT GmbH

I. Working Conditions / Personnel



1.) avoidance of child labour

Child labour must not be used at any stage of production and trade. Companies are called upon to adhere to the recommendations of the ILO conventions on the minimum age for the employment or labour of children. This minimum age should not be less than the age at which compulsory education ends and in any case not less than 15 years. However, a lower age is permissible in countries where the economy and educational institutions are less well developed. Here the minimum age is 14 years. For light work, the minimum age is 13 years. The minimum age for hazardous work is 18 years.



2.) Wages and social benefits

Working hours Remuneration and social benefits must comply with the basic principles regarding minimum wages, overtime and statutory social benefits. Working hours must at least comply with applicable laws, industry standards or relevant ILO conventions, whichever is more stringent. Overtime should only be voluntary and workers should be granted at least one day off after six consecutive working days.



3.) Free choice of employment

Forced or compulsory labour is not permitted. Workers must be free to terminate the employment relationship with reasonable notice. Workers may not be required to surrender their identity card, passport or work permit as a precondition for employment.

The prohibition of slavery and forced labour according to the European Convention on Human Rights Art. 4 must be observed without exception

(1) No one shall be held in slavery or servitude.

(2) No one shall be forced to perform forced or compulsory labour.

3. The following shall not be considered forced or compulsory labour for the purposes of this Article

(a) work which is normally required of a person who has been deprived of his liberty or who has been conditionally released in accordance with the conditions set out in Article 5

(b) a service of a military character or a service to replace compulsory military service in countries where conscientious objection is recognised;

(c) a service required when emergencies or disasters threaten the life or well-being of the community;

(d) a work or service which is part of the normal civic duties of citizens."



4.) Freedom of Association

Employees must be able to communicate openly with management about working conditions without fear of reprisals in any form whatsoever. They must have the right to join together, join a trade union, appoint a representative and be elected to one.

5.) Health and safety

The employer guarantees occupational health and safety at the workplace at least within the scope of national regulations and supports continuous development to improve the working environment.



II. environmental standards
1.) Environmental responsibility

Businesses must take a precautionary approach to environmental issues, take initiatives to promote greater environmental responsibility and encourage the development and diffusion of environmentally friendly technologies.



2.) Environmentally friendly production

 Optimum environmental protection must be guaranteed in all phases of production. This includes a proactive approach to avoid or minimise the consequences of accidents that could have a negative impact on the environment. Particular importance is attached to the application and further development of the



3.) Environmentally friendly products

 All products manufactured along the supply chain must meet the environmental standards of their respective market segment. This includes all materials and substances used in production. Chemicals and other substances that pose a risk when released into the environment must be identified. A hazardous substance management system must be set up for them so that they can be handled, transported, stored, reprocessed or reused and disposed of safely using appropriate procedures.



III Business ethics
1.) Fight against corruption

The highest level of integrity is expected in all business activities and relationships. Any form of corruption, bribery, extortion and embezzlement is strictly prohibited.



2.) Prohibition of Discrimination

Discrimination against employees in any form is not permitted. This applies to discrimination on the basis of gender, race, caste, skin color, disability, union membership, political conviction, origin, religion, age, pregnancy or sexual orientation.



3.) Safety & Quality

All products and services must meet the contractually agreed quality and safety criteria at the time of delivery and must be safe to use for their intended purpose.



IV. Information / Communication
1.) Information for business partners / employees

This policy must be posted in the local language at the Company's own facilities and those of its business partners or otherwise made available to employees.

state 04.2020



News

innovation in turbocharger development

FAKT GmbH builds first own turbocharger performance test bench!



FAKT Technik GmbH presents its impressive turbocharger performance test bench - a significant milestone. With a thermal power of 400 kW and integrated water, oil and intake air conditioning, all operating points of combustion engines can be simulated. If necessary, the test items can even be overloaded.

The groundbreaking, higher-level control system allows us to analyze and evaluate the compressor maps of the turbocharger test items down to the last detail. This test bench is the result of our passion for innovation and technology and has become a real highlight and eye catcher.

Discover more about our turbocharger performance test bench on our heatFaktory-website.





About FAKT:

FAKT is the accredited and recognized German automotive service provider for inspections, tests or homologations of sophisticated vehicles, their systems or components. The automotive testing company based in Heimertingen near Memmingen with further locations in Germany, Switzerland, Italy, Spain and China manages the work processes in accordance with standard 17025/17020. FAKT also develops and produces high-end test equipment for driving robotics and driver assistance systems (F-AIT) as well as hot gas generators or associated complete solutions for temperature tests (HeatFaktory). The company operates 8 test centers worldwide. In addition to brake, noise, light, EMC, crash and strength tests, to name just the most important ones, FAKT operates a state-of-the-art exhaust measurement center and rounds off its portfolio with an approx. 35-hectare test site, particularly with autonomous driving and vehicle endurance tests. The company was founded in 1996 by Xaver Fackler.

Brake Dyno

FAKT GmbH extends Brake Testing portfolio with ultra-modern inertia brake test stand with environmentally relevant test functions



Heimertingen, 28.09.2020: The FAKT Test and Engineering Center in Heimertingen near Memmingen has commissioned an additional flywheel mass test bench with environmentally relevant additional functions. Despite the corona lockdown and the generally difficult situation in the industry, the company decided in March 2020 to invest massively in future-oriented technology.

Sustainability is a driving factor in the industry and the million euro investment is intended to create new testing opportunities for NVH and precise particle / fine dust measurements in brake testing.

"We are convinced that this investment will be an excellent addition to our product and service portfolio". So the management of FAKT GmbH. "With the integrated climate chamber we will be now able to perform a whole range of future-relevant tests, even under extreme environmental conditions of temperature and humidity".

The test stand, which was delivered and installed in record time by the renowned manufacturer LINK Eng., has a special, generously designed test cell, in which even complete vehicle axles or large brake systems can be rigged and, in addition, the various techniques for measuring noise, vibrations and emissions of abrasion particles can be installed.

With speeds of up to 3,000 rpm and a drive power of up to 200 kW, inertial mass simulations from 5 to 400 kgm2 are possible for disc and drum brakes. Braking torques of up to 10,000 Nm can be measured.

"We are particularly enthusiastic about the Environmental Conditioning Unit, which allows tests to be carried out at a relative humidity of 15 to 90 % and temperatures of minus 40°C and plus 60°C."

The new flywheel mass test stand can be booked immediately and is of course TiSAX-approved.

more information to download



About FAKT:

FAKT is the accredited and recognized German automotive service provider for inspections, tests or homologations of sophisticated vehicles, their systems or components. The automotive testing company, located in Heimertingen near Memmingen with further locations in Germany, Switzerland, Italy, Spain or China, handles work processes according to standard 17025/17020. FAKT also develops and produces high-end test equipment for driving robotics and driver assistance systems (F-AIT) as well as hot gas generators or related complete solutions for temperature testing (HeatFaktory). The company operates 8 test centers worldwide. In addition to brake, noise, light, EMC, crash or strength tests, to name only the most important ones, FAKT operates a state-of-the-art exhaust gas measurement center and rounds off its portfolio with an approx. 35 hectare test area, especially with

New Measurement Center in Spain

Since January 2020 our new noise measurement center in south Europe, Andalusia/Spain is available for noise measurements on vehicles. In winter the average temperature is +15°C with low wind.

The certificated Measurement-track correspondes to the ISO 10844:2016 with directions from 260/320m length. The environment noise level is under 40 dB (A). The PAK system from Müller BBM is used as measuring and evaluation technology.

In addition to our Tracks we have an large hall for Vehicle parking with workshop area (lift, modern tire changer and balancer). A hotel complex with 20 rooms is connected to the measurement center.



In parallel, the noise measurements can be performed also on our Measurement tracks in FAKT-motion Benningen/Germany, if the weather permits.



Please contact us for further informations:

Technical support: lschmid@fakt.com  /  phone +49 (0) 8335 – 98 88 834

Administrative questions: teisenmann@fakt.co  / phone +49 (0) 8335 – 98 88 741



Corona virus informations

We would like to inform you that due to the recent outbreak of the coronavirus (COVID-19), as a precautionary measure, FAKT has instituted tighter controls for suppliers, customers an visitors who plan to access its facilities.



From today and until further notice, the admission to FAKT Locations will not be granted to the individuals who:



A. have been in countries which are infected with Corona (according to Robert Koch Institut www.rki.de/DE/Content/InfAZ/N/Neuartiges_Coronavirus/Risikogebiete_neu.html) within 14 days preceding the scheduled visit and/or access to any FAKT Locations

B. have been in direct contact with people affected by coronavirus (COVID-19) within 14 days preceding the scheduled visit and/or access to any FAKT plants;

C. have any flu-like symptoms, such as fever, cough or breathing difficulties.

D. are not carry and cover their mouth and nose when entering the FAKT site, provided that a minimum distance of 1.5 m cannot be guaranteed


Any visitors, customers and suppliers excluded by the aforementioned conditions, will be allowed to access FAKT Locations only after signing a self-certification form, thus confirming he/she does not fall into any of the above-mentioned categories (from bullet point A to D).

Any exception shall be managed with the site responsible with proper notification and approval.

As a general rule, and whenever applicable and feasible, FAKT recommend managing meetings in a remote manner (e.g. conference, video call) as appropriate.

We thank you in advance for your cooperation.

self-certification.pdf

CONTACT

  • FAKT GmbH
  • Grüntenstraße 3–5
  • D-87751 Heimertingen

  • Telephone: +49 8335 9888-0
  • Fax: +49 8335 9888-10
  • Email:
  •
  • Business hours:
  • Mon – Fri: 08:00 - 12:00 and 13:00 - 17:00 hrs



FAKT AG
Prüf- und Ingenieurzentrum
Augrabenstrasse 9
CH-9466 Sennwald

Telephone: +41 71722 - 9600
Fax: +41 71722 - 9601
E-Mail:

Business hours:
Mon – Fri: 08:00 - 12:00 and 13:00 - 17:00 hrs












Side Notice

In charge:

FAKT GmbH
Grüntenstraße 3–5
D-87751 Heimertingen


Telephone: +49 8335 9888-0
Fax: +49 8335 9888-10


Email:
Web: www.fakt.com


Postal address:
FAKT GmbH
Grüntenstraße 3–5
87751 Heimertingen



VAT Identification NUmber pursuant to Value Added Tax Act:
Ust-ID-Nr.: DE 812 095892



Bank data:
IBAN:
SWIFT-BIC:



Court of Registration:
Amtsgericht Memmingen, HRB 9101



Authorised representatives:
Xaver Fackler



Responsible for the content according §55 paragraph 2 RStV:
Xaver Fackler (Address as above)




data protection commissioner:
Xaver Fackler ()




Picutre credits:
© Pixabay | Creative Commons CC0
© iStockphoto | nadla
© iStockphoto | Gumpanat
© iStockphoto | mevans



Icon-Font proofs:
© Dave Gandy | licensed SIL OFL 1.1, Code MIT-License, CC by 3.0



Note on the dispute resolution:
The European Commission provides a platform for out-of-court online dispute resolution at http://ec.europa.eu/consumers/odr/.



Information of Act on Alternative Dispute Resolution in Consumer Matters:
FAKT GmbH is neither willing nor obliged to participate in a dispute resolution procedure before a consumer arbitration board.


Webdesign, concept and implementation:
OYA media GmbH | www.oya-media.de
Heisinger Straße 14, 87437 Kempten (Allgäu)

Disclaimer:

The content of our site was created with the greatest care. However, we cannot take any responsibility for the accuracy, completeness or topicality of the content presented. As a service provider, we are responsible in accordance with § 7(1) TMG (German Teleservices Act) for our own content on these sites in accordance with general legislation. However, in accordance with §§ 8 to 10 TMG (German Telemedia Act), we - as service providers - are not obliged to monitor transmitted or stored information from third parties or to investigate circumstances that indicate illegal activity. Obligation to remove or block the use of information under the general laws remains unaffected. Nevertheless, liability in this regard is possible only from the moment that knowledge of the specific breach of law is obtained. We will remove the content as soon as we become aware of the relevant infringement.

Our site contains links to external third-party websites, and we have no control over their contents. Therefore, we cannot accept any responsibility for this external content. The respective service provider or operator of the sites is always responsible for the contents of linked sites. The linked sites were checked at the time of linking for any infringement. Illegal contents were not noticeable at the time of linking. However, permanent monitoring of the content of linked sites is unreasonable without concrete evidence of infringement. We will remove the content as soon as we become aware of the infringement.


Copyright:

The content created or used by the site operator, as well as posts on these sites are subject to German copyright. Reproduction, editing, distribution or any kind of use outside the scope of copyright require the consent of the author or editor. Downloads and copies of this site are permitted only for private, non-commercial use. Insofar as the content on this site was not created by the operator, the copyright of third parties is respected. In particular, third-party content is marked as such. However, should you become aware of copyright infringement, we would request that you notify us accordingly. We will remove such content as soon as we become aware of the infringement.



© Copyright:

All rights reserved. Text, images, graphics, sound, animations and videos, as well as their arrangement, are subject to copyright law and other protective legislation. The content of this website must not be copied, distributed, modified or made available to third parties for commercial purposes.



Data Privacy Declaration:

As the operator of this website, we take the protection of your personal data very seriously. We shall deal with your personal data in a confidential manner and in conformity with the legal data privacy guidelines and this data protection declaration.

If changes are made to our data privacy declaration in future, the changes shall always appear on these pages.

Use of our website is usually possible without providing personal information. Personal information (such as name, address or email address) is collected on our pages on a voluntary basis, as far as possible. This data will not be disclosed to third parties without your express consent.

Please note that data transmission over the internet (e.g. communication by e-mail) may be subject to security risks. Comprehensive protection of data against access by third parties is not possible.



Contact form:

If you send us your enquiries by filling in the contact form, your details from the enquiry form will be saved at our end, along with the contact data specified in the form, for the purpose of processing the enquiry and for follow-up questions. We will not forward this data without your consent.

Data privacy Policy

The provider takes the protection of your personal data very seriously and complies strictly with the rules of the Data Protection Act. This website collects personal date only to the necessary technical extent. The collected data is never sold or made available to third parties for other reasons.

The following declaration provides you with an overview of how we ensure this protection and what type of data is collected and for what purpose. The visitor is hereinafter referred to as the user and the website operator as the provider.

Data processing on this website
The unavoidable server statistics (server log files) automatically store data that the user browser transmits to the provider.

This data is for the provider and normally cannot be assigned to specific persons. This data is not consolidated with other data sources, and the data is deleted after a statistical analysis.

Contact data of the Data protection commissioner
Siegfried Hilbrich
E-Mail: datsec@fakt.com
if there are any questions or suggestions every affected person can contact the dataa protection commissioner.

Cookies
The web pages may use so-called cookies in several places. These help in making our service more user-friendly, effective and safer. Cookies are small text files that are stored on your computer and saved by your browser. Most of the cookies used by us are so-called “session cookies”. They are automatically deleted at the end of your visit. Cookies do not cause any damage to your computer and do not contain viruses. To prevent placing cookies from the website on the PC, the internet browser must be set so that it deletes cookies from the hard disk of the PC, blocks all cookies or warns before a cookie is saved.

Google Analytics
This website uses Google Analytics, a web analysis service provided by Google Inc. ("Google"). Google Analytics uses so-called "cookies", text files that are stored on your computer and facilitate analysis of your use of the website. The information produced by the cookie on your use of this website (including your IP address) is sent to a Google server in the USA and stored there. Google will use this information to evaluate your use of the website, to compile reports on website activities for the website operator and to provide other services associated with use of the website and the Internet. Google may also pass this information on to third parties if this is legally prescribed or if third parties process this information on Google's behalf. On no account will Google link your IP address with any other Google data. You can prevent the installation of cookies by adjusting your browser software accordingly. However, we must advise you that in such a case you may not be able to fully utilise all functions of this website. By using this website, you declare your agreement to Google's processing of the data recorded by Google about you in the previously described manner and for the previously stated purpose.

We would like to advise you that our website uses Google Analytics with the extension “_anonymizeIp()”, so that only shortend IP addresses are logged and direct personal reference is excluded.

You can refuse the data collection, processing and use at any time through the extension of your browser with effect for the future.

Email
The provider strives with all necessary technical and organisational security measures to save personal data of the user in such a way that it is not accessible to third parties or to the public.

If the user wishes to contact the provider via email (also applies to the contact form), the provider refers to the fact that the confidentiality of the transferred information cannot be ensured completely for this channel of communication. The provider therefore recommends that the user should send confidential information by post only.

Right to information
The user has a right of access at all times to any data held about them, and the right to know the origin and recipient of any such data, as well as the purpose of processing the data. The provider shall provide the user with information about the saved data at the email address provided in the imprint.



Last Update 04.2020



General Terms and Conditions of FAKT GmbH

for consultancy, auditing and advisory services


1. General - Scope of application

1.1 The company FAKT GmbH provides technical services in the transport and motor vehicle fields, in particular in the form of tests, measurements, and expert opinions, offers technical services for the testing and approval of vehicle systems and components, carries out product tests of all kinds, provides consultancy in the field of technic and license regulations, prepares appraisals, develops test procedures, test benches and software, provides all sorts of services, such as engineering, testing and design and carries out vehicle inspections.

1.2 Unless otherwise expressly agreed in writing, these General Terms and Conditions of FAKT GmbH shall apply to the acceptance and execution of all purchase orders, except any customer terms and conditions, even if these have not been expressly rejected. The General Terms and Conditions shall also apply to all future purchase orders until revoked.
Separate agreements can be spatulated for specific services.

1.3 Any collateral agreements, commitments, and other statements by our employees are only binding if they are expressly confirmed by us in writing or by e-mail. This also applies to amendments to this clause.

2. Implementation of orders

2.1 The type and scope of the service provided by FAKT GmbH are determined by the order and order confirmation, regardless of the form in which the order was placed or confirmed. Terms, deadlines, and cost estimates are based on information provided by the customer and estimates by FAKT GmbH.

The estimated costs are to be considered as approximate values only, unless they have been expressly confirmed in writing as fixed and binding. Also, cost estimates confirmed as fixed and binding are overridden by subsequent modification of their bases, independently if caused by unpredictable circumstances or events or by modification of the order scope requested by the customer.

If changes or additions to the specified scope of the order arise during the proper execution of the order, these must be agreed additionally in writing or by e-mail and paid for separately.

2.2 The purchase orders accepted by FAKT GmbH are carried out or appraisals are prepared by the recognized state-of-the-art technology and, unless otherwise agreed in writing, handled by FAKT GmbH processes.

FAKT GmbH provides its services, as far as reasonable and adequate to the scope, by the standards and/or guidelines specified by the client as well as the relevant statutory and other applicable provisions.

3. Warranty and Liability

3.1 Our warranty only covers the services that have been expressly commissioned to us. FAKT GmbH does not assume any warranty for the correctness and functioning of the objects under examination or the overall system to which the examined or inspected objects belong; in particular, FAKT GmbH is not responsible for the design, operation, material selection, and construction of the tested objects.

3.2 Any warranty claims of any kind whatsoever are limited to free-of-charge inspection, rectification, or supplementation. Liability claims against FAKT GmbH are in any case limited to liability for gross negligence on the part of FAKT GmbH.

If such reworking measures fail twice, the customer is entitled, at its discretion, to request a reduction of the remuneration or a rescission of the contract.

3.3 The warranty period is one year after the passing of risk, i.e. from the delivery of the results or products to the client.

3.4 FAKT GmbH only assumes liability for the suitability of the service for the customer's purposes if the FAKT GmbH service is defective and FAKT GmbH is liable for this or if FAKT GmbH has issued a corresponding guaranteed statement. Liability for consequential damages arising from breaches of duty or about a guarantee of quality is excluded unless FAKT GmbH has acted with intent or gross negligence.

3.5 If FAKT GmbH should be liable by our General Terms and Conditions - particularly when considering the subsequent provisions of section 4 - FAKT GmbH liability shall be limited for each order to a maximum amount of 50.000 EUR for property damages and up to an amount of 50.000 EUR for financial damages.

3.6 The liability limitations shall also apply to possible liability for the members of our staff or other vicarious agents involved by FAKT GmbH.

4. Additional liability, force majeure, missed deadlines

4.1 Except in cases of intent, gross negligence, bodily injury, or liability under the Product Liability Act, all further claims of the customer for direct and indirect damage - regardless of the legal grounds - are excluded insofar as they go beyond the liability and warranty assumed by FAKT GmbH within the scope of our General Terms and Conditions.

The same applies regarding the liability of FAKT GmbH for its employees and other third-party personnel contracted by us.

This provision also applies to the items provided by the client for the execution of the order.

4.2 FAKT GmbH shall not be liable for damage caused by force majeure.

Force majeure shall be deemed to be unforeseeable events that could not have been foreseen or averted with the usual care, such as power failure, fire, water damage, explosion, earthquake, or similar events that affect normal operations.

4.3 If the deadlines specified by FAKT GmbH in its offers or its specific order, confirmations for the completion of the services to be performed by FAKT GmbH are exceeded by a wide margin, FAKT GmbH shall only be liable within the framework of the provisions of these General Terms and Conditions if FAKT GmbH is responsible for the reasons for the deadline being exceeded.

FAKT GmbH shall not be liable if the deadlines are exceeded due to changes or additions to the original scope of services originally requested by the customer under these General Terms and Conditions.

4.4 Regardless of this, the client is obliged to obtain standard insurance cover for direct or indirect damage.

5. Remuneration and terms of payment

5.1 The payments according to the offer or order confirmation issued by FAKT GmbH apply to the calculation of the services of FAKT GmbH. Until the order is finally placed, the prices stated in the respective offer are subject to change. In the absence of a specific written offer or order confirmation from FAKT GmbH, the charges apply by the price list valid at the time the service is provided.

5.2 FAKT GmbH is entitled to demand appropriate advance payments for the services to be provided by FAKT GmbH and/or to issue partial invoices corresponding to the services already provided. Partial invoices do not have to be expressly designated as such. If an invoice is received, this shall not mean that the order has finally been invoiced.

5.3 The amounts invoiced by FAKT GmbH are due for payment within 14 days of invoicing without a deduction, unless otherwise stated in the offer or the confirmation of the specific order. The customer shall be deemed in default of payment upon receipt of a written reminder or at the latest 14 days following the due date indicated on the invoice. Once the customer is in default, interest of 8% per year above the respective base interest rate shall be owed for the respective outstanding invoice amount.

5.4 Remunerations shall be subject to the value-added tax (VAT) at the applicable statutory rate. VAT will be shown separately on the invoice.

6. Abnormal termination of the order

If the order is terminated before the services entrusted to FAKT GmbH have been fully provided - due to the customer giving notice or based on a mutual agreement to rescind - FAKT GmbH is entitled to charge remuneration for the services provided up to this point in time; the amount of the remuneration for the services provided is determined by the ratio between the services provided and those not provided. For example, if FAKT GmbH has provided 60% of the entrusted services by the date of termination of the order, we are accordingly entitled to 60% of the total agreed remuneration. FAKT GmbH is also entitled to claim remuneration for the services not yet provided at the time of termination. This remuneration corresponds to the value of the services not provided about the total price less expenses incurred; the expenses saved are set at a flat rate of 30%.

7. Confidentiality, Copyright, Data Protection

7.1 FAKT GmbH is entitled to make copies of all written documents which have been submitted by the customer for perusal and which are important for the execution of the order.

7.2 If, during the implementation of the order, expert opinions, test results, calculations, and the like are prepared, FAKT GmbH shall grant the client a simple, non-transferable license to use such, provide that this is necessary in accordance with the purpose specified in the contract. Further rights are expressly not transferred.

The client is also entitled to use the expert opinions, results, calculations, or similar things produced by us outside his company during business. He may only use the name or brand “FAKT” if he uses the expert opinions, results, calculations, etc. provided by us in full.

Texts intended for publication (media releases, advertising texts, packaging texts, manual of instructions, etc.) that refer to FAKT GmbH documents must be submitted to FAKT GmbH in full, including all related illustrations and enclosures before publication. Each reference to the FAKT GmbH test report or relevant document must include the type, scope, number, and date of the test. If the customer modifies, edits, or only uses excerpts of the expert reports, test results, calculations, etc. prepared by FAKT GmbH, the use of the “FAKT” name or brand is not allowed.

7.3 Violations of clauses 7.1 and 7.2 shall be sanctioned by legal and/or other appropriate measures.

7.4 FAKT GmbH shall not disclose and/or use, without authorization, any business and trade information of the customer for purposes, other than the implementation of the order, that becomes known to FAKT GmbH when executing the requested activities. The customer is aware that FAKT GmbH must transmit data, information, and reports to FAKT GmbH's recognition and accreditation bodies upon request, and that they have the right to participate in tests and inspections. By placing the order, the customer accepts this fact without restriction.

7.5 FAKT GmbH also processes and uses personal data exclusively for its own purposes. FAKT GmbH uses data processing systems for this purpose. FAKT GmbH has taken technical and organizational measures to ensure the security of data files and data processing procedures. The employees involved in data processing are obliged by the provisions of the Data Protection Law and are required to strictly comply with all data protection regulations.

8. Conformity statements in test reports or test protocols

8.1 If the client requires a statement on conformity regarding a specification or standard or test method (that means: pass/fail, in tolerance/out of tolerance, in compliance/not in compliance), FAKT GmbH applies the standard decision rule “Simple Acceptance Criteria” with indirect consideration of the measurement uncertainties as a decision rule. “Simple Acceptance Criteria” is also referred to as ‘shared risk’, as the probability of being outside the tolerance limit can be up to 50% if a measurement result is exactly at the tolerance limit (assuming a symmetrical normal distribution of measurements). According to this rule, the test laboratory and the client of the measurement result implicitly or explicitly agree to accept as conforming (and otherwise reject) a test result whose property has a measured value within the tolerance interval.

Statements of conformity are therefore reported as:

Pass - the measured value is below the acceptance limit, with acceptance limit = tolerance limit

Fail - the measured value is above the acceptance limit, with acceptance limit = tolerance limit

8.1.1 To keep the probability of incorrect decisions at an acceptable level, an upper limit for measurement uncertainty Umax is agreed with the customer. These values are specified for accredited test methods and in the relevant test reports.

8.1.2 There are test scenarios without uncertainty in the outcome. Instead, the outcome is influenced by the conditions under which the test is performed, and these are subject to measurement uncertainty. In these cases, well-characterized test methods are used, and sources of uncertainty are minimized by a) the use of measuring instruments with maximum permissible errors within specified limits, b) environmental influences such as temperature and relative humidity maintained within specified limits, c) well-documented control of test procedures and d) well-documented competency of measurement personnel.

8.2 By placing a purchase order, the customer agrees to this condition without any restrictions.

8.3 This rule does not apply if a different decision rule is specifically required by the client or in the relevant specification standard or test method.

9. Final provisions

9.1 The law of the Federal Republic of Germany shall apply to the exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG).

9.2 The place of jurisdiction for the assertion of legal actions for both parties will be Memmingen.

9.3 The place of performance of all obligations under this contract is Heimertingen, the registered office of FAKT GmbH.



Heimertingen, December 2024

Accreditation / Name

Authorized as testing laboratory by the "Kraftfahrt Bundesamt" and by the "DAkkS" according to:

  • DIN EN ISO/IEC 17025/17020
  • DIN EN ISO 9001:2008



FAKT is designated by the "Kraftfahrtbundesamt" for complete vehicle, systems and parts certification within the German statutory defined domain. Hereby authorized to carry out and certify tests of your products according to national and international standards.




this page is currently being revised
